FCC Approved 100M VGA Extender Over CAT5 With Audio KVM Adaptive

Brand Name : AEO

Certification : CE, FCC

Place of Origin : China

MOQ : 1 pair

Price : negotiation

Payment Terms : T/T

Supply Ability : 10000 pairs/month

Delivery Time : 5-8 working days

Packaging Details : package and carton

output connector : VGA, 2-USB

local output : HD15PIN（VGA）

input level range : 0.5-2.0Vp-p

input level error : less than 3mV

input impedance : 75Ω

output impedance : 75Ω

Contact Now

100M VGA Extender over CAT5 with Audio KVM(Adaptive)

The main features of the 100m VGA Extender:

1. It can extend the power switch of the computer,keyboard,mouse and video port max of 100-200-300m
2. It can be switched from remote monitor to local monitor or switched from local 3.monitor to remote monitor by the keystroke on the Sender or SCROLL on the local keyboard
3. Use the single cable (CAT5,CAT5E,CAT6), the cost is inexpensive
4. It supports keyboard and mouse, it supports (VGA) port monitor
5. It can remove and insert the local and remote keyboard and mouse
6. Power on computer use the emulational keyboard and mouse
7. It supports DOS, Windows, Linux,Unix system
8. It does not need a driver, it is simple to install
9. The remote keyboard and mouse display is in real-time
10. The anti-jamming is strong
11. The anti-lightning and anti-invasion is strong Cascade operation for increasing the distance
12. Index of anti-lightning and anti-invasion:withstand air-discharge 15KV, contiguity-discharge 8KV

Technical Paramaters

input connector:	1-ch VGA+ 1-ch usb
output connector:	VGA, 2-USB
local output:	HD15PIN(VGA)
bandwidth:	100M
	200M
	300M
input level range:	0.5-2.0Vp-p
input level error:	less than 3mV
input impedance:	75Ω
output impedance:	75Ω
echo ullage:	-30dB@5MHz
Max DC compensation:	±5mV-0
SNR:	60dB
Connector standard:	HDB15,USB,Mini-DIN6,RJ45
Video standard:	VGA,SVGA,XGA,SXGA,UXGA,LCD
Cable standard:	CAT5,CAT5E,CAT6 UTP
Power adapter:	DC12V/1A
operational temperature:	-25℃~+70℃
deposited temperature:	-40℃~+80℃
relative humidity:	0~95%(non-condensing)
MTBF:	>30000 hours

Overview

KVM Extender is one of our independent development products.The newest promoted KVM Extender has high quality of imagine, remote keyboard and mouse action does not have the time delay. It may widely apply in the computer,monitor,security, multimedia teaching systems and so on. It could extend keyboard.

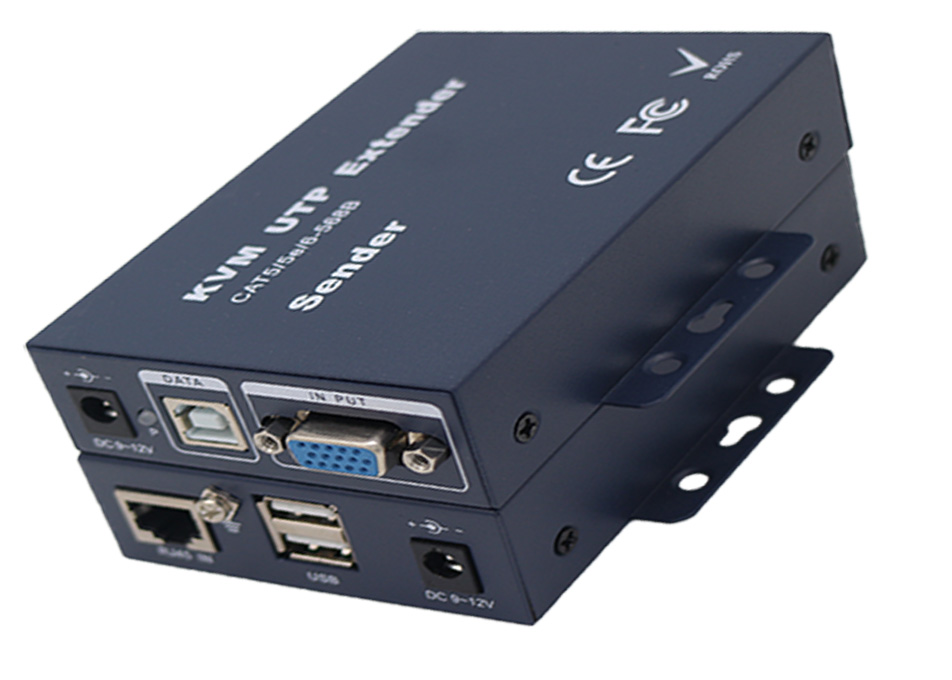

Product picture

FCC Approved 100M VGA Extender Over CAT5 With Audio KVM Adaptive

Packaging & Shipping

● All of our package are international standard package

● We will deliver our products as soon as the order confirmed

FCC Approved 100M VGA Extender Over CAT5 With Audio KVM Adaptive
